Mainboard Refresh Kit (NTSC)
Component Guide
Capacitors
Total of 5 radial capacitors.
|
Voltage |
Farad |
Temp. |
Quantity |
|
35v |
4.7uF |
85 |
4 |
|
16v |
2200uF |
|
1 |
Styrene Capacitors
Total of 2 axial styrene capacitors for audio.
|
Voltage |
Farad |
Quantity |
|
50v |
820pf |
2 |
Other Components
|
Part |
Quantity |
Notes |
|
DC Mono Power Jack |
1 |
|
|
7805 Voltage Regulator |
1 |
With screw and heat sink compound |
|
Red LED |
1 |
|

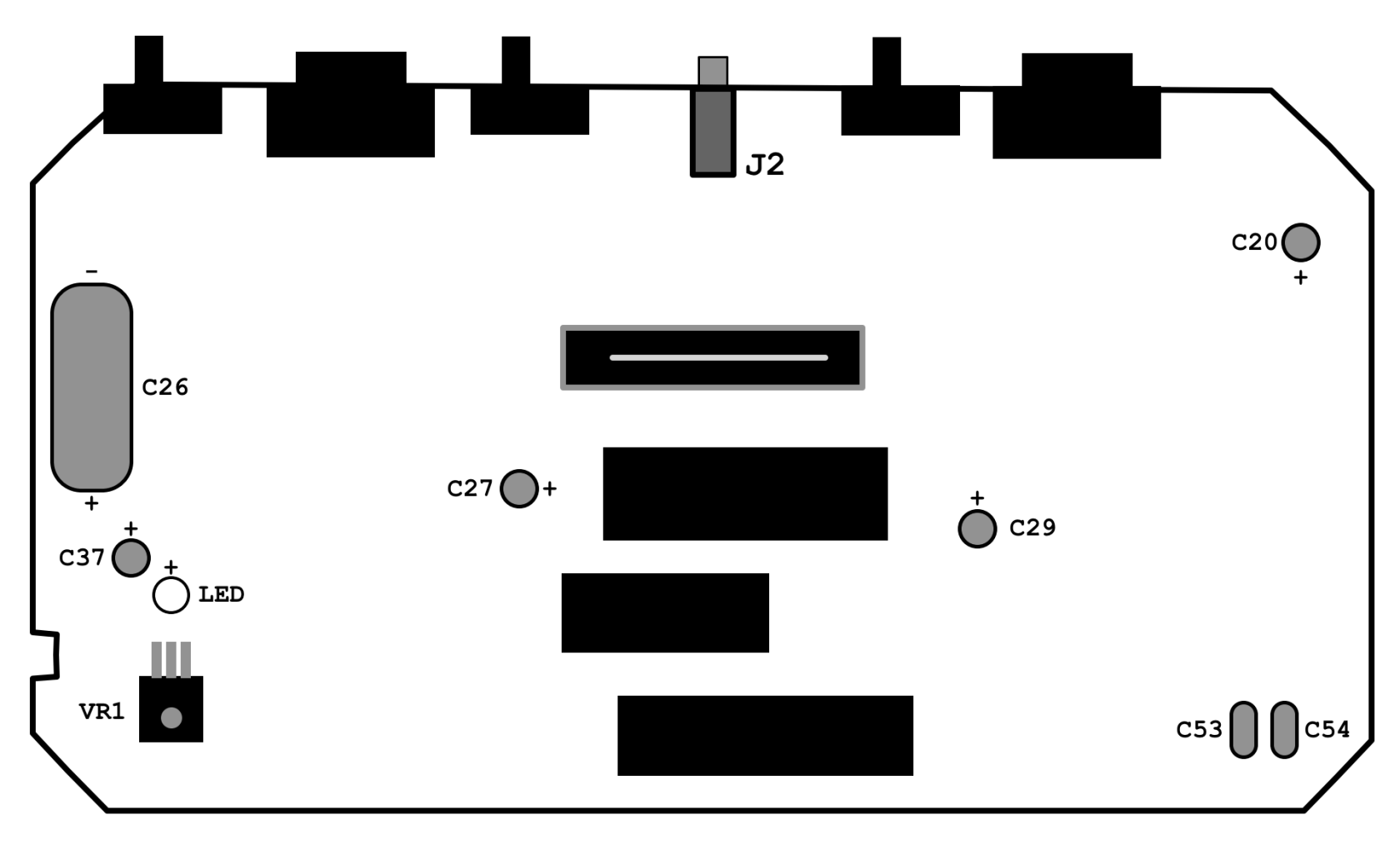

Board Layout
